CaliberMRI – Model 207 breast phantom for MRI
The CaliberMRI Premium Double-Wall Breast Phantom is the CaliberMRI Model 207 for quality-control support and technical standardization in quantitative breast MRI.
Typical use
Suitable for MRI, research and QA/QC teams that need a physical reference for tracking ADC and T1 measurements, fat-suppression assessment and technical protocol stability, while validating local compatibility and use.
Key points
- The official page presents the product as a Premium Double-Wall Breast Phantom for quantitative breast MRI.
- The public spec sheet identifies the product as Model 207 Premium Double-wall Breast Phantom.
- The official page states development in collaboration with NIST and UCSF.

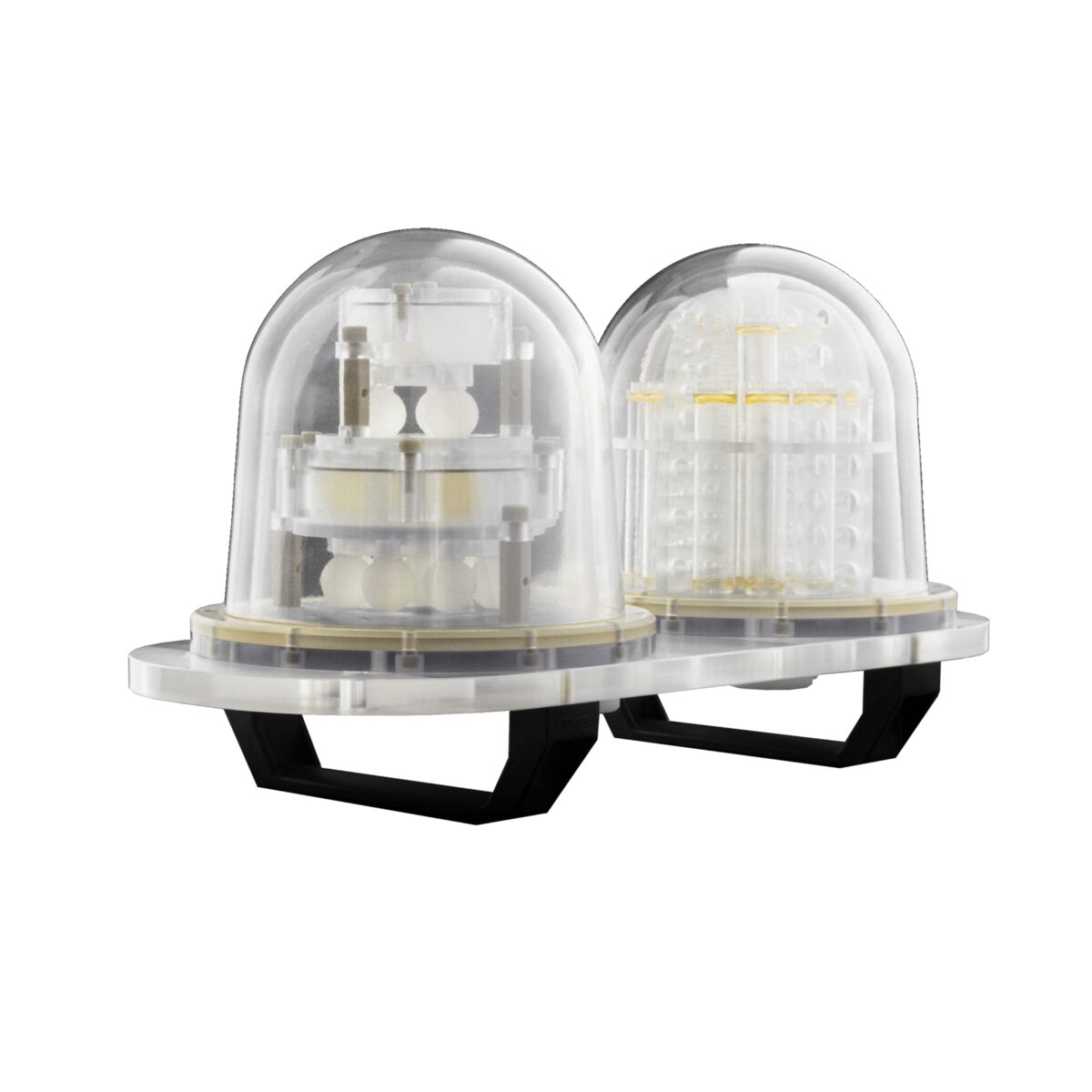

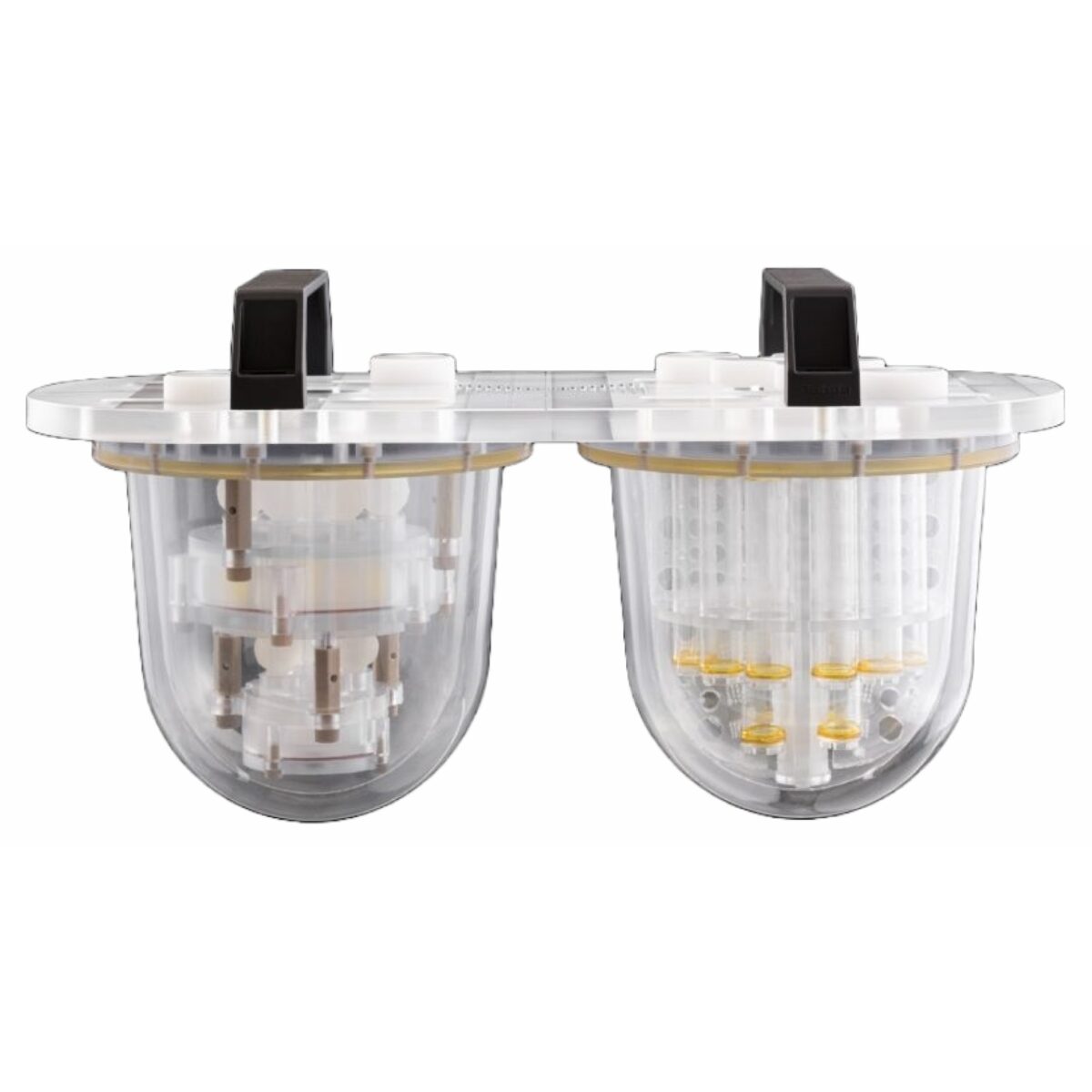

- The product combines contrast and diffusion sides in robust, semi-rigid double-walled shells.
- A fat mimic sits between the walls to support comprehensive fat-suppression assessment.

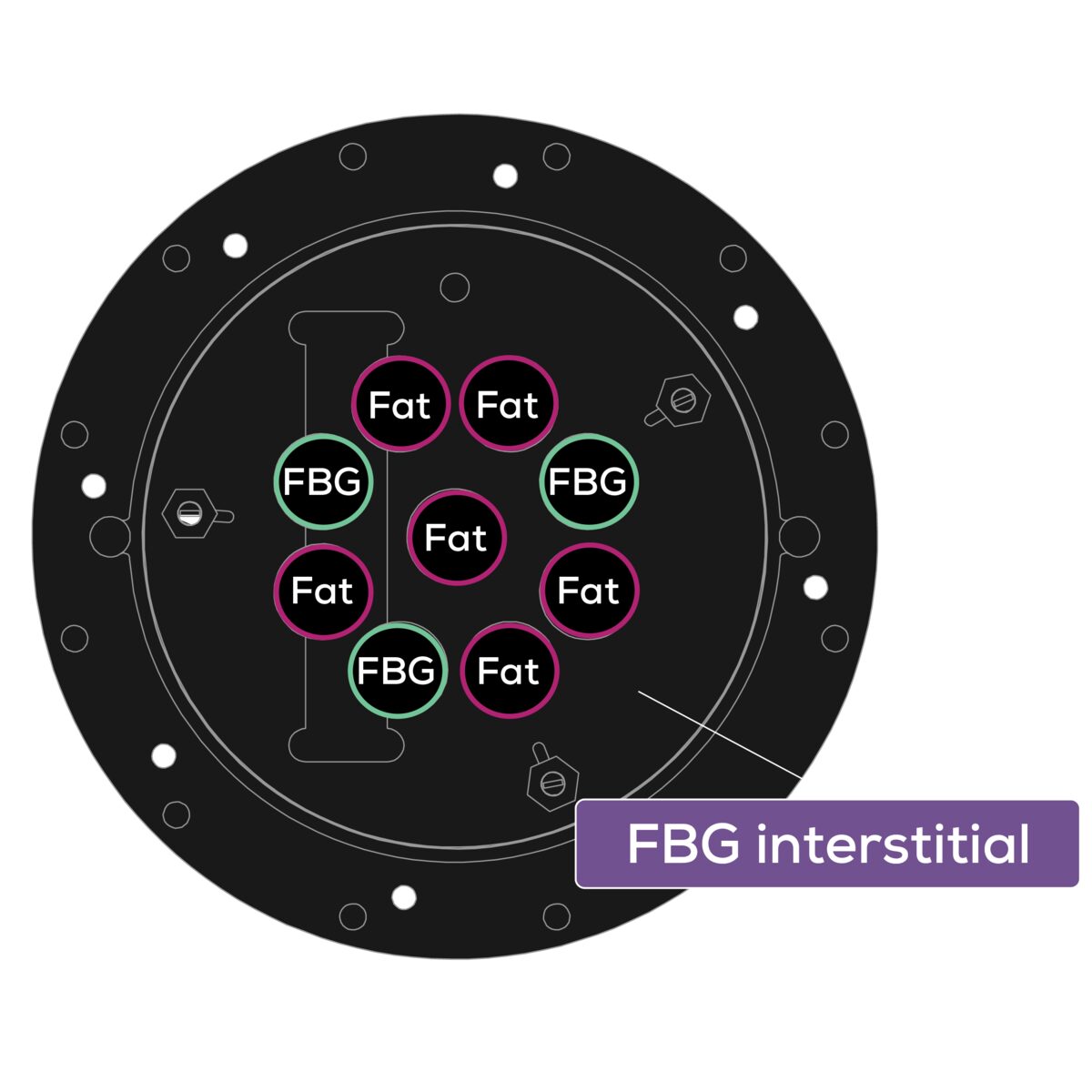

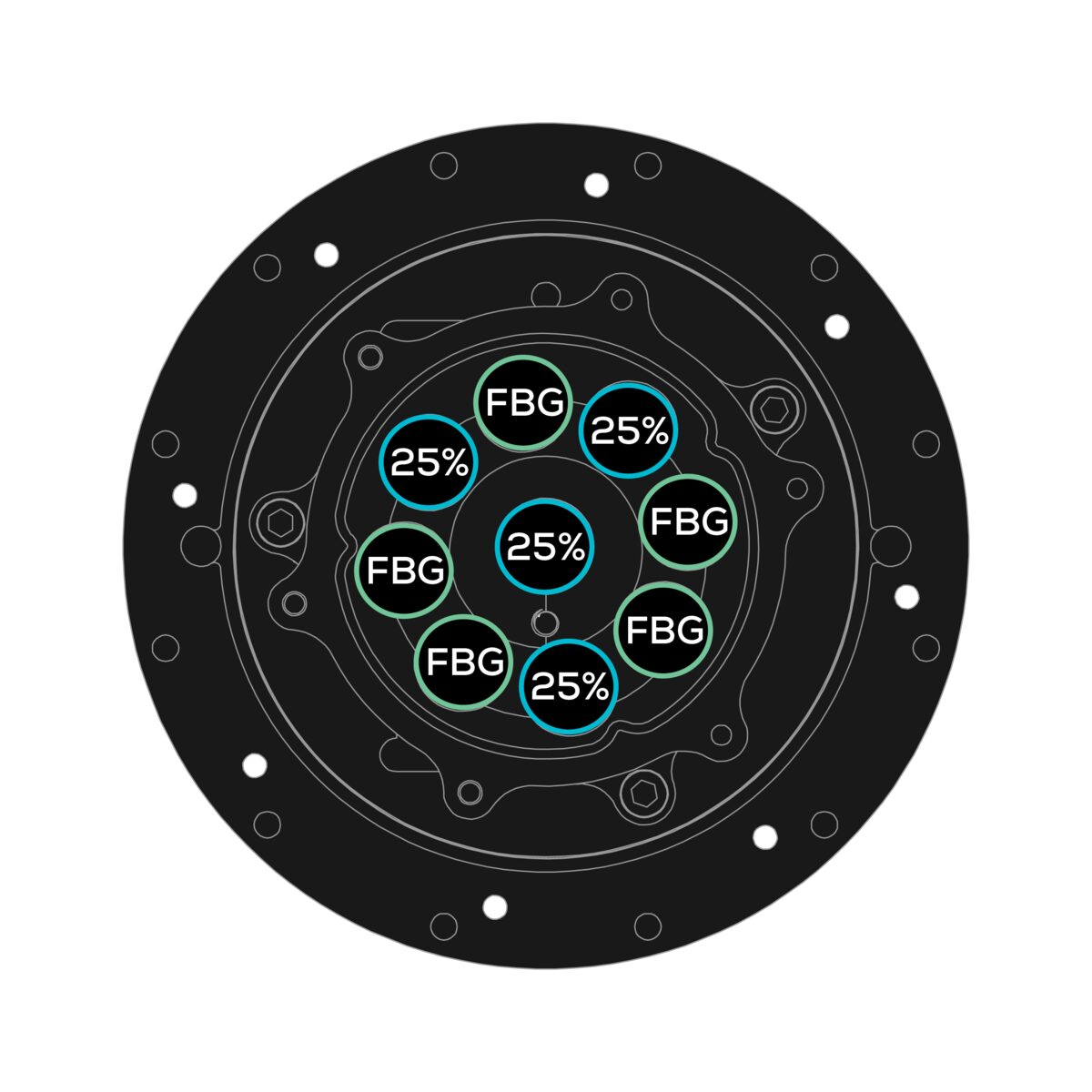

- The contrast side includes fat, dense fibroglandular tissue (FBG) and PVP mimics to support T1 mapping and standardization.

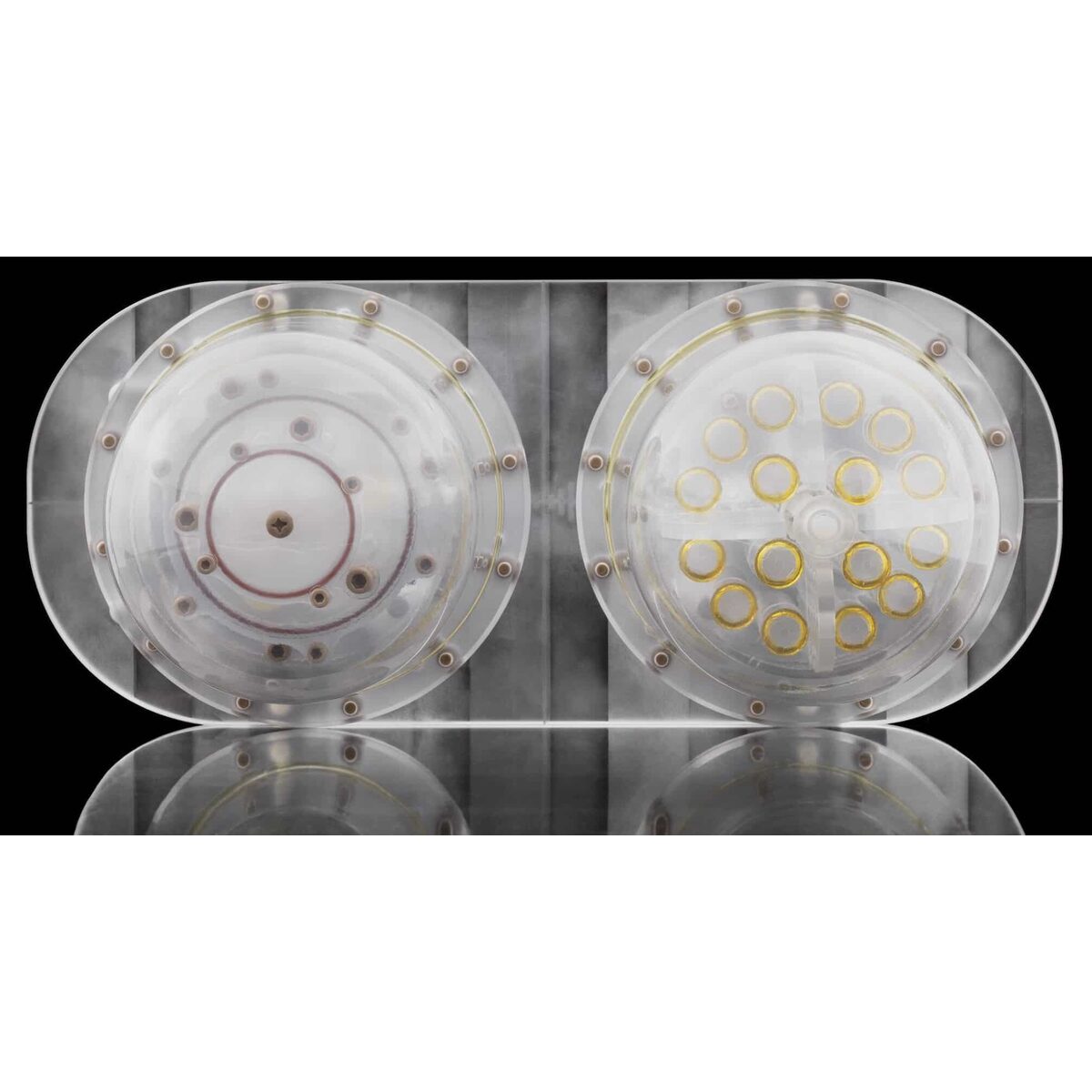

- The diffusion side includes a fat mimic and a varied array of PVP mimics to support ADC mapping and standardization.
- The official page lists a patented MR-readable LC thermometer for temperature compensation from 15 C to 24 C.
- CaliberMRI states that calibration solutions and tissue mimics have traceability through NIST when available.
- Compatible with qCal-MR QA/QC software according to the official page.
Official sources
Information basis
Official public CaliberMRI Premium Double-Wall Breast Phantom page and Model 207 public spec sheet. Interphysix copy is original and conservative.
