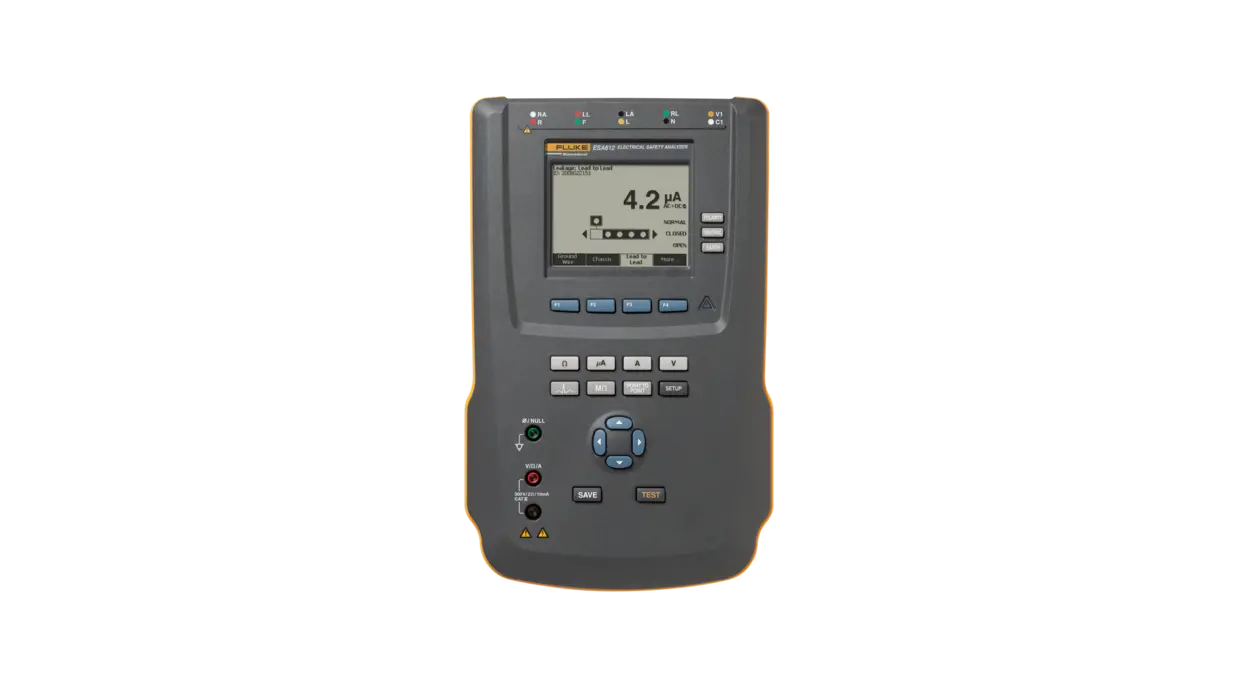

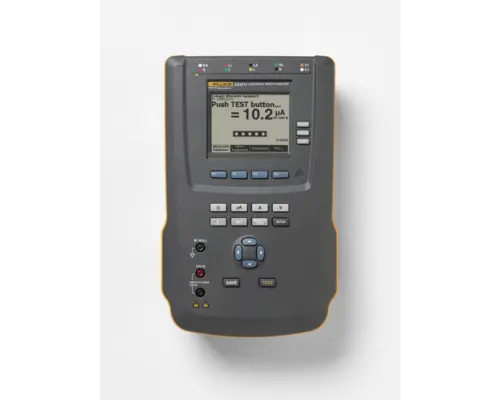

Fluke Biomedical ESA612 for installed-base continuity and ECG
ESA612 remains useful for teams already working with ECG, Data Viewer or Ansur, but it is no longer the primary recommendation for a new purchase when current alternatives such as ESA712, ESA620 and ESA715 are available.
This page is now positioned for compatibility, controlled replacement and availability/price confirmation before any quote.
Choosing the right model in the ESA family
Integrated simulator
Keeps ECG waveform tests and dual-lead measurements for teams that need compatibility with existing procedures.
100 tests in memory
Internal memory for 100 records and USB for Data Viewer or Ansur, useful when those workflows are already implemented.
Portable and readable

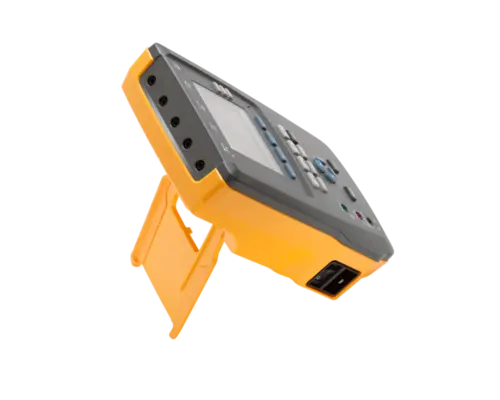

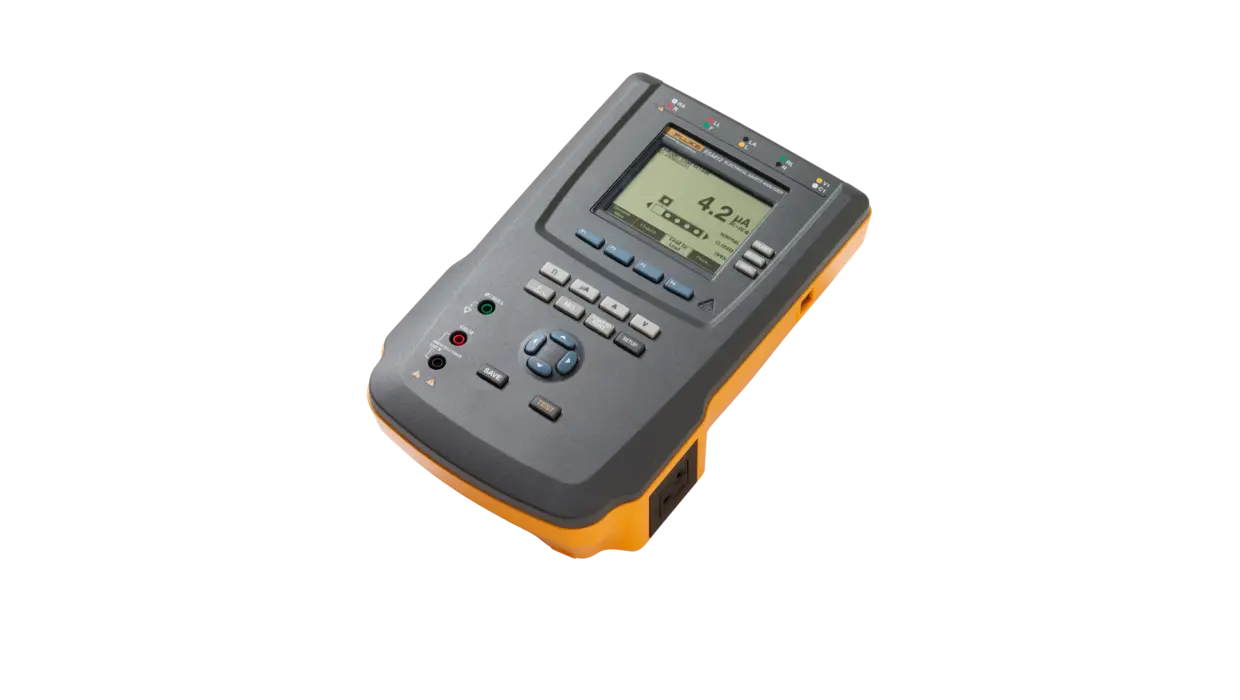

Large adjustable-contrast display, tilt stand and ergonomic design for field environments.
European configuration

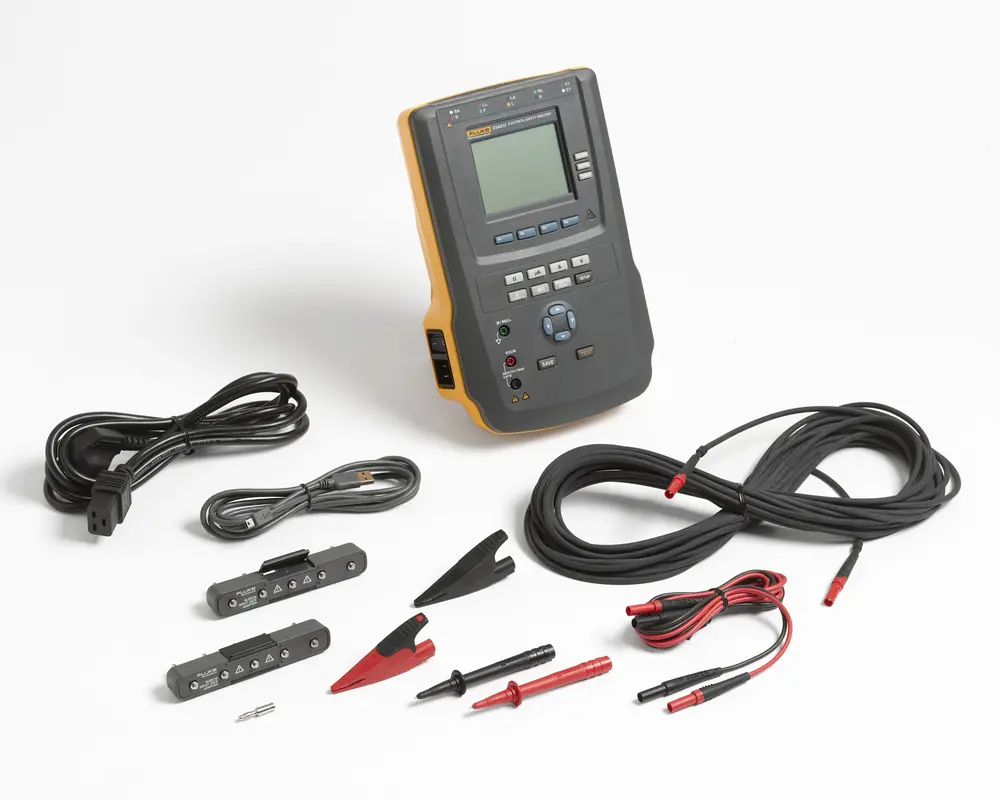

Always confirm 230 V version, power cord, accessory kit and software before ordering.
IEC 62353 and IEC 60601-1
Use the hospital procedure to decide automation level, leakage tests and documentation requirements.
Local Interphysix support
Interphysix helps frame model, accessories, calibration, training and technical continuity.
Standards, automation and test workflow
Selection should start from the device under test, the standard used by the organization and the documentation requirement. In Portugal, IEC 62353, IEC 60601-1 and OneQA/Ansur workflows matter most.

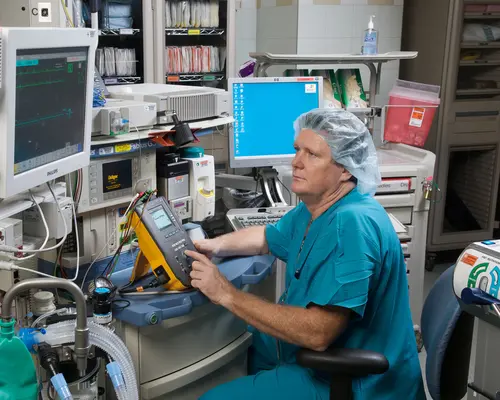

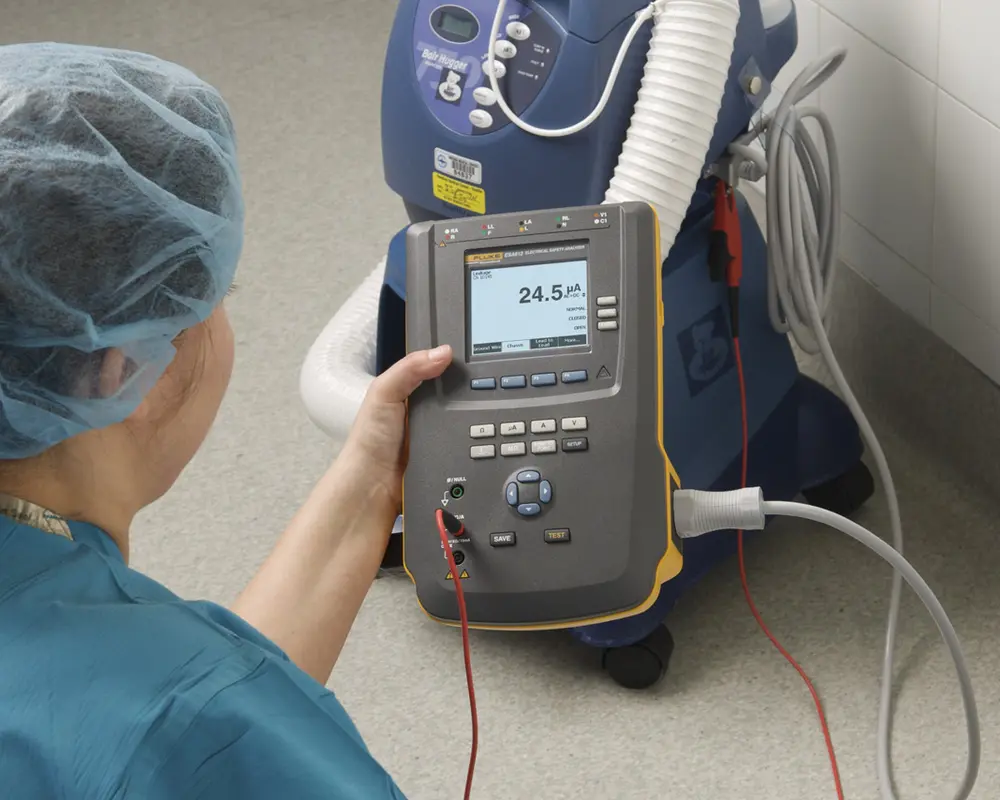

- One-touch testing is useful when an existing procedure already uses ESA612 for electrical safety and ECG.
- ESA612-02 Europe, 230 V, part number 4132199; availability and price should be confirmed before quoting.
- ECG expansion through five applied-parts jacks and optional adapter/box as required.
- Compared with ESA609, it adds ECG, memory and data transfer.
- Compared with ESA615, it is less focused on advanced automation; both should be treated as continuity options, not first recommendations for a new purchase.
- For a new purchase, compare ESA712, ESA620 and ESA715 first.
Where this model fits in the ESA cluster
Technical summary and configuration
Frequently asked questions
When should I choose ESA612 instead of ESA609?
Choose ESA612 when the team needs to maintain ECG simulation, internal records or result downloads in an installed ESA612 workflow. For a new purchase, check availability and compare current alternatives.
Does ESA612 work with software?

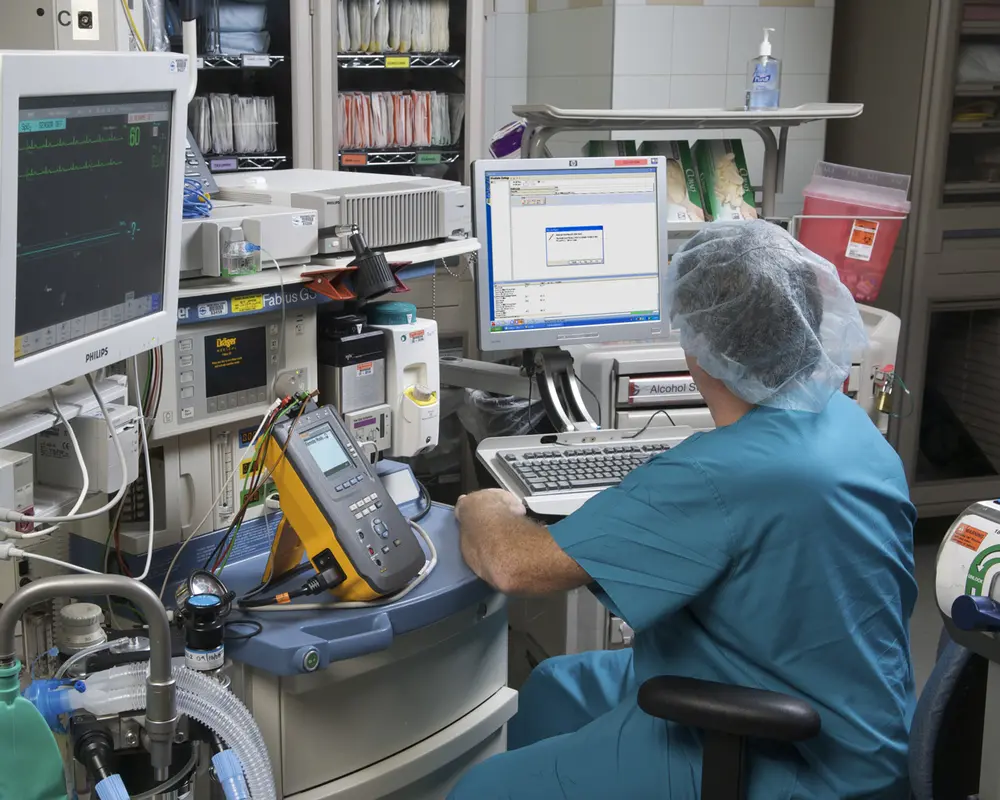

Yes. Official documentation describes USB connection for Ansur and Data Viewer, supporting record download and documentation; confirm bundle availability and licensing.
Does ESA612 replace ESA615?
No. ESA615 is stronger for automation, removable memory and barcode/keyboard entry; for a new purchase, both should be compared with ESA712/ESA715 and real availability.
Official sources and next steps
This content is based on official Fluke Biomedical documentation and adapted for technical selection in Portugal. Final configuration, accessories and availability should always be confirmed before ordering.
